HWR63L-B


Series

  • Change in seconds
    Reduce your start up costs and minimise downtimes by changing your tool in seconds
  • Integrated air transfer system
    For supplying pneumatic actuators. Additional media can be transmitted using optional energy elements.
  • Replacing with no tools required
    The locking lever fully integrated into the housing makes it possible to replace tools without any additional tools
Technical Data
Connecting flange according EN ISO 9409-1TK 63
Pneumatic energy transfer6 [Quantity]
Flow per connector170 [l/min]
Electrical energy transferoptional
Self locking mechanism when lockingmechanical
Repetition accuracy in Z0.01 [mm]
Repetition accuracy in X, Y0,02 [mm]
Nominal operating pressure6 [bar]
Operating temperature5 ... +80 [°C]
Moment of inertia2.6 [kgcm²]
Weight0.31 [kg]

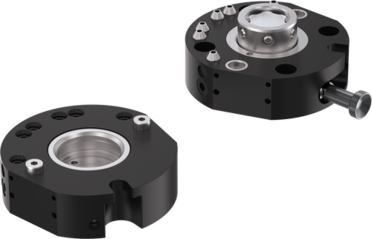

Benefits in detail
  1. Loose part
    for tool side assembly
  2. Locking lever
    with spring supported snap in function
  3. Fix part
    For robot side assembly
  4. Locking bolt
    adapted to the clamping sleeve
  5. Locking stroke
    re-adjustable via locking sleeve
  6. Robot flange
    partial mounting circle in accordance with EN ISO 9409-1
  7. Integrated air feed-through
    Air / vaccum transfer hoseless control possible
  8. Mounting for energy element
