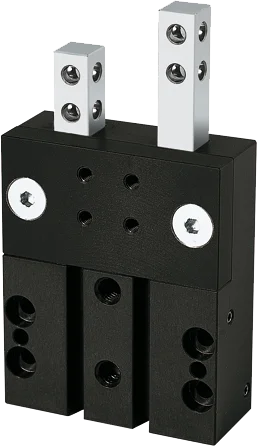

VE10-B

Separators
Series VE

  • Mechanical forced control
    Guarantees process reliability for your application since only one workpiece can be separated and guided through at a time
  • Decide for yourself!
    Sensing via magnetic field sensors or inductive proximity switches: Unlike the benchmark, you are free to choose!
  • Failure-free continuous operation
    Our uncompromising "Made in Germany" quality guarantees up to 10 million maintenance-free cycles
Equipment/Options
  • 10 million maintenance-free cycles (max.)
  • IP40
  • Magnetic field sensor
  • Inductive sensor
Technical Data
Stroke per tapped rod10 [mm]
Force in extend40 [N]
Force in retract30 [N]
Self locking mechanismmechanical
Cycle count0.04 [s]
Repetition accuracy +/-0.05 [mm]
Operating pressure min.3 [bar]
Operating pressure max.8 [bar]
Operating temperature min.5 [°C]
Operating temperature max.+80 [°C]
Air volume per cycle3 [cm³]
Protection to IEC 60529IP40
Weight0.16 [kg]
Benefits in detail
  1. Square guide
    rugged, high forces and moments capacity
  2. Tapped rod
    hardened steel
  3. Mounting
    individual seperator finger mounting
  4. Locking
    integrated, mechanical locking
  5. Energy supply
    possible from several sides
  6. Drive
    two double-acting pneumatic cylinders
  7. Permanent magnet
    installed in piston area
  8. Sensing
    groove for positioning of the magnetic field sensor
