GM10

Discontinued model
Notice on the discontinued model
This product is one of our discontinued models. You can still find it here to access technical information and support. If you have questions about this product, please use the contact form. We will be happy to help!

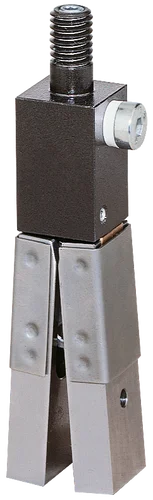

2-Jaw Angular Grippers
Series GM

Personal data
Message
Straight Fittings - Quick Connect Style
Sensors and energy supply

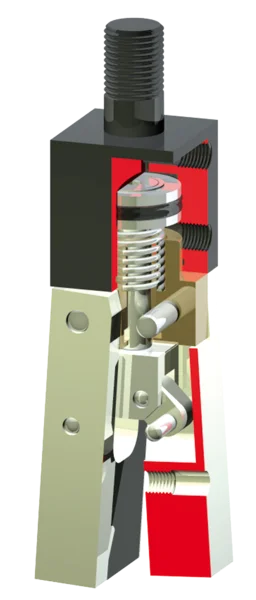

Details
  1. Mounting and positioning
  2. Robust, lightweight housing
    • Hard-coated aluminum alloy
  3. Energy supply
  4. Drive
    • single or (depending on design) double-acting pneumatic cylinder
  5. Integrated spring
    • integrated into piston chamber as energy storage (as reset in single acting cylinder version)
  6. Positively driven lever mechanism
    • synchronized the movement of the gripper jaws
  7. Gripper jaw
    • machinable
  8. Sheet metal (GM10)
    • allows parallel position of the gripper jaws for machining
