ZU50-N-18F

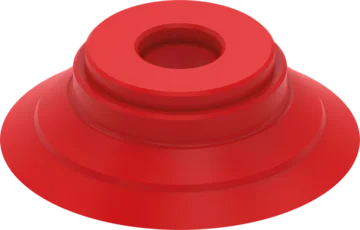

Flat suction cup
Series ZU

Diameter: 1.5 mm–80 mm
Optimum geometry
- For efficient handling even of the smallest workpieces
- Can be used universally
Application areas
- Semiconductors
- Intralogistics
- Paper and printing

Diameter	50 [mm]
Material	NBR
Fixing thread	G1/8" internal
Lifting force parallel at -20 kPa	20.01 [N]
Lifting force parallel at -60 kPa	36.98 [N]
Lifting force parallel at -90 kPa	43.95 [N]
Lifting force vertical at -20 kPa	35.02 [N]
Lifting force vertical at -60 kPa	72.99 [N]
Lifting force vertical at -90 kPa	92.02 [N]
Lifting force parallel at -20 kPa	2.04 [kg]
Lifting force parallel at -60 kPa	3.77 [kg]
Lifting force parallel at -90 kPa	4.48 [kg]
Lifting force vertical at -20 kPa	3.57 [kg]
Lifting force vertical at -60 kPa	7.44 [kg]
Lifting force vertical at -90 kPa	9.38 [kg]
Shore hardness	60
Suction cup shape	round
Color	Black
Operating temperature	-20 ... +110 [°C]
Volume	12 [cm³]
Weight	0.025 [kg]
