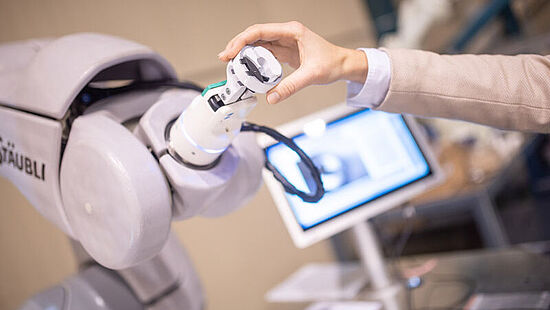

HUMAN – ROBOT

DIFFERENT FORMS OF INTERACTION

HRC COMPONENTS

  • Zones of action
  • Workpiece holder in the secured area
  • Gripper with special HRC geometry
  • Secure holding of the workpiece, even if the power supply fails
  • Shared workspaces
  • Coupled work
  • No contact necessary
  • Reduced speed
  • Shared workspaces
  • Workpiece holder in the unsecured area
  • Gripper with special HRC geometry and reliable gripping force limiter
  • Gripping force limited to a max. of 140 N as per ISO / TS 15066
  • Secure holding of the workpiece even if the power supply fails
  • Coupled work
  • Contact is necessary
  • Reduced speed
Easy-to-use packages/startZ
startZ is one of the easiest options for turning your idea for a robot application into a reality in no time at all. All the necessary components are located in a single box. Everything is integrated, including the gripper, communication module with intuitive operating software and tools.

Configuration levels

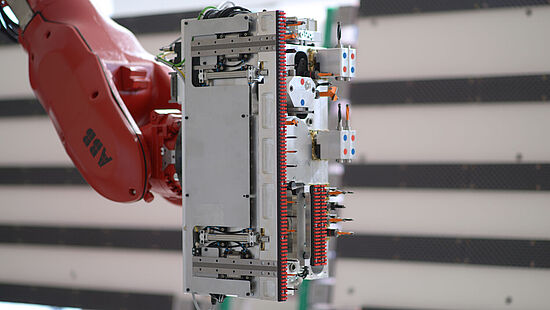

Robot flange

For mechanical connection to the follow-on tools. The energy supply for the components installed on the robot flange is arranged internally or externally, depending on the robot type. Control signals as well as pneumatic, electric and hydraulic media can be passed through this.

Robot flange adapter plate – Multi-function level

Adapter plate between specific robot flange and ISO partial mounting circle.

Multi-function level

Multi-function components with ISO partial mounting circle for changing, compensating, protecting and executing. Energy elements for signal transmission and media transfer are also available for the tool changers.
Rotary distributors, axis compensation modules, collision protection, angle flange, tool changer and energy elements

Multi-function level adapter plate – automation component

Adapter plate between ISO partial mounting circle and automation component.

Automation components

Various versions of automation components with and without


We make selecting grippers and accessories fast and easy. An intelligent search consisting of the most important selection criteria quickly shows you sound suggestions for selection.

User-friendly overview delivers comprehensive  results. Users enjoy the convenience of selecting the model that is right for them from a wide variety of grippers (including accessories). The most important data is presented clearly along with the relevant product recommendations.

Refined selection through filters. Additional filters and specific application data make it possible to narrow down the  search further.

The solution you want, with the mobile availability you need. The product finder is web-based and there is no need to install any software.

Robotics product finder
