GG4032SC-B
2-jaw radial gripper
Series GG4000
- Mounting for inductive proximity switch
Equipment/Options
10 million maintenance-free cycles (max.)
Spring closing C
High-strength S
IP64
Protected against corrosion
Magnetic field sensor
Inductive sensor
Purged air
Technical Data
| Stroke per jaw | 20 [°] |
| Gripping moment in closing at 0° | 7 [Nm] |
| Gripping moment secured by spring min. | 1.5 [Nm] |
| Gripping force in closing at 0° | 460 [N] |
| Dead weight of mounted gripper finger max. | 0.055 [kg] |
| Length of the gripper fingers max. | 65 [mm] |
| Closing time | 0.02 [s] |
| Opening time | 0.03 [s] |
| Repetition accuracy +/- | 0.05 [mm] |
| Operating pressure | 4 ... 8 [bar] |
| Nominal operating pressure | 6 [bar] |
| Operating temperature | 5 ... +80 [°C] |
| Air volume per cycle | 10 [cm³] |
| Approvals | LABS / REACH / RoHS |
| Protection to IEC 60529 | IP64 |
| Weight | 0.27 [kg] |
Accessory
Benefits in detail
- Stroke adjustment screw
Infinitely adjustable opening stroke - Removable centering sleeves
individual gripper finger mounting - Robust, lightweight housing
Hard-coated aluminum alloy - Sensing slot
mounting and positioning of magnetic field sensors - Mounting and positioning
mounting possible from several sides for versatile positioning - Integrated gripping force safety device
spring integrated into cylinder as energy storage - Position sensing

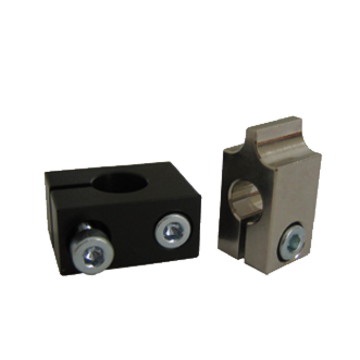

permanent magnet for direct monitoring of piston movement - Mounting block
mounting for inductive proximity switch - Sealed rotation point
for use under extreme conditions
