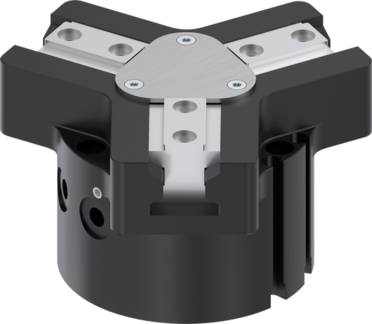

GPD5004NC-AL-A
3-Jaw Concentric Grippers
Series GPD5000AL
"The ALternative"
- Aluminum Linear Guide – The alternative
Reduced to those aspects which are the most important, the steel / aluminum guide variant offers significantly better performance when compared to a similar gripper with a T-groove travel guide, and is on par with the best principles of toothed guidance systems. - Extensive range of accessories
Offers you products that are optimally matched to the grippers. Particularly noteworthy are the adjusting jaws for tool-free adjustment of the gripping range, interchangeable jaws for quick jaw changes and precise sensor technology that reliably monitors the entire stroke range via IO-Link or analog. - The value proposition - consistent and without asterisks
Rely on the Zimmer Group and benefit from an exclusive 24-month warranty for your GPP and GPD5000 grippers - without restrictions, even for parts that come into contact with the workpiece and wear parts. Maximum reliability, maximum productivity - 24/7!
Equipment/Options
IP40
Magnetic field sensor
Purged air
Long stroke / Spring closing
Long stroke / Spring opening
Long stroke
15 million maintenance-free cycles (max.)
Aluminum Linear Guide
Technical Data
| Stroke per jaw | 4 [mm] |
| Gripping force in closing | 650 [N] |
| Gripping force secured by spring min. | 190 [N] |
| Closing time | 0.018 [s] |
| Opening time | 0.028 [s] |
| Dead weight of mounted gripper finger max. | 0.18 [kg] |
| Length of the gripper fingers max. | 70 [mm] |
| Repetition accuracy +/- | 0.01 [mm] |
| Operating pressure | 4 ... 7 [bar] |
| Nominal operating pressure | 6 [bar] |
| Operating temperature | -10 ... +90 [°C] |
| Air volume per cycle | 21 [cm³] |
| Clean room applications according to DIN EN ISO 14644-1 | 4 |
| Approvals | LABS / REACH / RoHS |
| Protection to IEC 60529 | IP40 |
| Protected against corrosion | No |
| Weight | 0.32 [kg] |

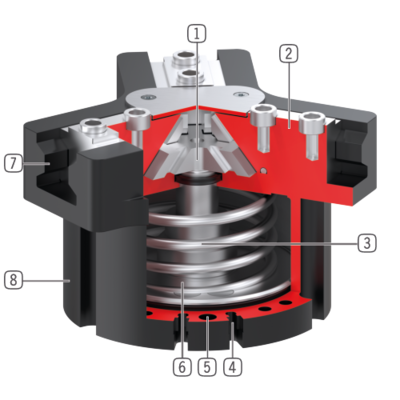

Benefits in detail
- Wedge hook mechanism
high forces and moments capacity Synchronized gripper jaw movement - Gripper jaw
Gripper fingers mounted using removable centering sleeves Lubricated for life via incorporated lubrication slots - Integrated gripping force safety device
Spring built into cylinder chamber as an energy store - Sensing slot
mounting and positioning of magnetic field sensors - Mounting and positioning
Alternatively, on several sides for customized mounting - Drive
Double-acting pneumatic rotor cylinder - Aluminum Linear Guide
Robust prismatic guide Enables the attachment of long gripper jaws - Robust, lightweight housing
Hard-coated aluminum alloy
Certificates clean room suitability
SERIES GPD5000 00-VERSIONS*
SERIES GPD5000 21-VERSIONS*
SERIES GPD5000 AL-VERSIONS*
*Certifications are valid for all versions only up to installation size GPD5013
