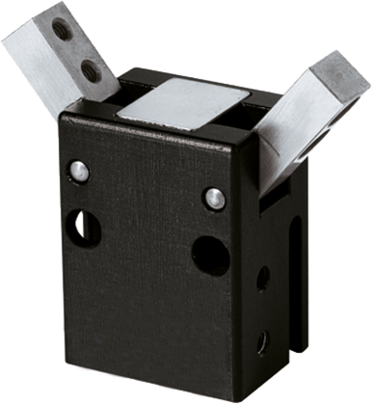

MGW812N
Equipment/Options
10 million maintenance-free cycles (max.)
IP30
Technical Data
| Stroke per jaw | 37.5 [°] |
| Gripping moment in closing | 4.1 [Nm] |
| Gripping moment in opening | 4.55 [Nm] |
| Gripping force in closing | 255 [N] |
| Gripping force in opening | 285 [N] |
| Closing time | 0.03 [s] |
| Opening time | 0.03 [s] |
| Repetition accuracy +/- | 0.05 [mm] |
| Operating pressure | 3 ... 8 [bar] |
| Nominal operating pressure | 6 [bar] |
| Operating temperature | 5 ... +80 [°C] |
| Air volume per cycle | 22.1 [cm³] |
| Approvals | LABS / REACH / RoHS |
| Protection to IEC 60529 | IP30 |
| Weight | 0.41 [kg] |
Accessory
Benefits in detail
- Gripper jaw
individual gripper finger mounting - Robust, lightweight housing
Hard-coated aluminum alloy - Position sensing
permanent magnet for direct monitoring of piston movement - Integrated gripping force safety device
spring integrated into cylinder as energy storage (from size 803 upwards) - Mounting and positioning
mounting possible from several sides for versatile positioning - Energy supply
possible from several sides - Sensing slot
mounting and positioning of magnetic field sensors - Removable centering sleeves
quick and economical positioning of the gripper fingers
